Drainage Pipe Dedicated Electrofusion Welder 32mm-315mm For Soldering

  • 1
  • 2
  • 3

Brand Name : MM-TECH

Model Number : MMT-EF315S

Certification : CE,ISO

Place of Origin : China

MOQ : 1set

Price : USD500-USD550per set

Payment Terms : T/T, Western Union

Supply Ability : 10000 sets per week

Delivery Time : 3 work days

Packaging Details : Wooden Box

Product Name : Electric Fusion Welder

Dimensions : 245*210*300mm

Rated Voltage : 220VAC-50HZ

Outside Temperature Range : -5-40 Degree

Welding Range : 32-315mm

Ambient Temperature Probe : automatic

Rated Power : 2450W

Rated Current : 10.7A

Weight : 3.9kg

Contact Now

Electrc Fusion Welder Description:

The electrofusion welder is suitable for welding low pressure or siphonic fusion tubes with a diameter of 32 to 315 mm.
The 315s automatically detects any connections to the parts to be welded and any faults in the welding process, and compensates for the current supplied based on the ambient temperature.
Compliant with current safety standards and directives, it is lightweight and easy to carry.

Electrc Fusion Welder Specification:

Model MMT-EF315S
Working range 32-315mm
Rated voltage 220VAC-50HZ
Rated current 10.7A
Rated power 2450W
Outside temperature range :-5-40°C
Ambient temperature probe automatic
Dimensions 245*210*300mm
Weight 3.9kg
Usage: Pipe Electrofusion Welding
Eletrical Couplers Brands: Akatherm-Euro, Geberit,Valsir,Coes,Waviduo
After-sales Service Provided: Engineers Available To Service Machinery Overseas


Electrofusion Welding Machine Features:

1. Ultra-wide power supply voltage and power frequency input, fully adapt to the power consumption restrictions on the construction site.

2. Always monitor the power supply voltage, frequency and the ambient temperature of the construction site.

3. With automatic voltage stabilization and automatic temperature compensation, it is not affected by ambient temperature during welding.

4. The computer menu is displayed on the Chinese LCD screen, and the operation is extremely convenient.

5. High-precision voltage, current output and welding time to ensure welding quality.

6. Automatic welding, manual welding, to meet the welding requirements of domestic and foreign manufacturers on the same layer of drainage pipe fittings.

7. Large capacity welding data storage.

8. Welding data printing function (according to customer needs).

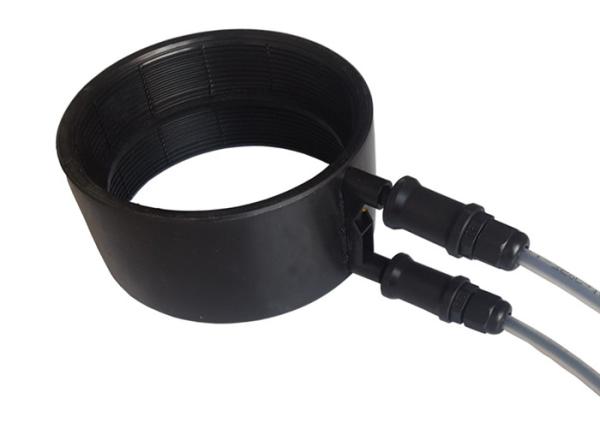

Sketch Map:

Drainage Pipe Dedicated Electrofusion Welder 32mm-315mm For Soldering

Service:

Machine Quality Guarantee : 24 months.--- If any parts broken or does not work under normal operating, we are free to provide.

1. Engineers Available to service Machinery Overseas

2. Port: Ningno, Shanghai, Tianjin or as required
