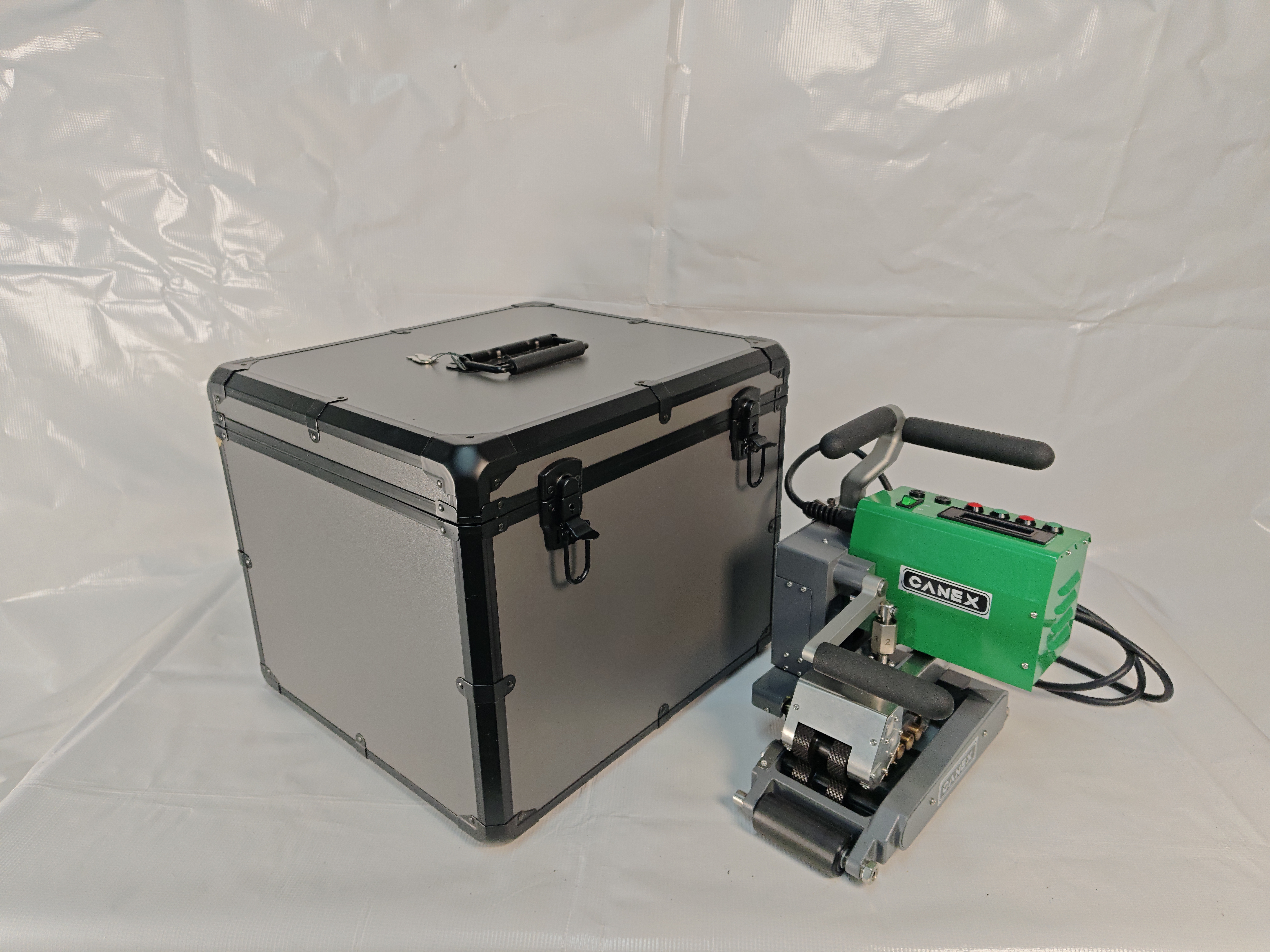

CX600 Geomembrane Welder For 0.8-3.0mm HDPE PP Geomembrane 2100W High-Power
Product Description:
The CX600 has a power of 2100W and a weight of 11.5kg. The main frame of this machine, the material used is aviation aluminum, the characteristics of this material, light weight, high strength, no deformation, and we use the die casting process, (not foundry die casting), is open steel mold, the use of 1500 tons of die casting machine die casting molding, after forming, the surface is painted treatment, spray paint after processing.
Product Specifications:
| Voltage: | 220V |
| Frequency: | 50Hz |
| Power: | 2100W |
| Welding speed: | 0-8m/min |
| Heating temperature: | 0-450℃ |
| Welding material thickness: | 0.8-4.0mm |
| Welding seam width: | 16mm*2, inner cavity 16mm |
| Welding seam strength: | ≥85% of original material |
| Overlap width: | 120mm |
| Net weight: | 11.5kg |
Applications:
The Hot Wedge Machine CX600 is commonly used in multiple fields. In civil engineering, it is essential for constructing roads, railways, airports, etc., providing reliable welding to ensure the stability and waterproofing of pond liner. For water conservancy projects, it helps in building canals, reservoirs and other hydraulic structures, preventing water leakage. In the environmental protection field, it is widely used in landfill sites to prevent pollutants from seeping into the soil and groundwater. In mining, it offers an effective solution for welding geomembrane in mines and tailings ponds, ensuring safety. Additionally, it serves well in agriculture for constructing irrigation systems and ponds. Its efficient and high - quality welding plays a significant role in the success of various projects.
Product Advantages:
1. Main Frame Design:
The main frame is made of aviation aluminum, die-cast, and painted on the surface, which is light and strong.
2. Precision Bearings:
The bearing position and screw holes are CNC machined, using Japanese IKO needle roller bearings and German NSK deep groove ball bearings.
3. Liquid Crystal Display Screen:
The temperature and speed are controlled by computer chip programming, and the LCD screen digitally displays the temperature and speed.
4. Pressure Adjustment:
The double handle design is ergonomic, and the pressure nut is equipped with a high-strength spring for easy adjustment.
5. Hot Wedge:
The hot wedge cutter is available in copper and brass. The curved pipe design is waterproof, and the fixing screws are filled with silicone shields.
